Roll to Roll Laser Cutting Machine for Reflective Tape
Model No.: LC230
Introduction:
The laser finishing technology is especially effective for cutting reflective film, which cannot be cut using traditional knife cutters. LC230 laser die cutter offers a one-stop solution for unwinding, laminating, removing waste matrix, slitting and rewinding. With this reel to reel laser finishing technology, you can complete the entire finishing process on a single platform in a single pass, without using dies.
GOLDEN LASER LC230 Digital Laser Die Cutter, from roll to roll, (or roll to sheet), is a fully automated workflow.
Capable of unwinding, film peeling, self-wound lamination, half-cutting (kiss-cutting), full-cutting as well as perforation, removal of waste substrate, slitting for rewinding in rolls. All these applications made in one passage in the machine with an easy and quick set-up.
It can be equipped with other options according to customer’s requirements. For example, add a guillotine option to cut transversely to create sheets.
LC230 has an encoder for feedback on the position of printed or pre-die-cut material.
The machine can work in continuous from 0 to 60 meters per minute, in flying cut mode.

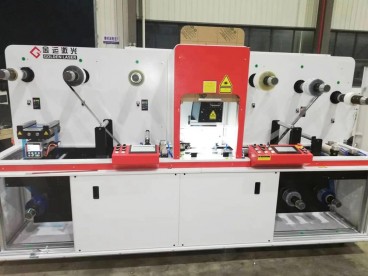

Overall View of LC230 Laser Die Cutter
Discover more detailed profiles of LC230
Laser Cutting Unit
Dual Rewind
Razor Slitting

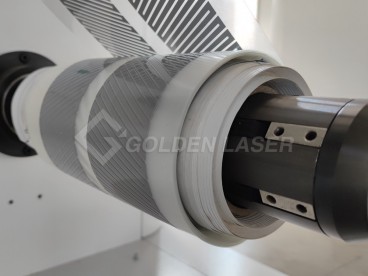

Waste Matrix Removal
Golden Laser System Benefits
Laser Cutting Technology
Ideal solution for just-in-time manufacturing, short runs & complex geometry. Eliminates traditional hard tooling & die fabrication, maintenance and storage.
Rapid Processing Speeds
Full cut (total cut), half cut (kiss-cut), perforate, engrave-mark & score cut the web in continuous flying cut version.
Precision Cutting
Produce complex geometry not achieveable with rotary die cutting tools. Superior part quality that cannot be replicated in the traditional die cutting process.
PC Workstation & Software
Through the PC Workstation you can manage all the parameters of the laser station, optimize layout for maximum web speed & yields, convert graphics files to be cut & reload jobs and all parameters in seconds.
Modularity and Flexibility
Modular Design. A variety of options are available to automate and customize the system to suit a wide variety of converting requirements. Most options can be added in the future.
Vision System
Allows precision cutting of improperly positioned materials with cut-print registration of ±0.1mm. Vision (registration) systems are available for registering printed materials or pre-die cut shapes.
Encoder Control
Encoder to control the exact feeding, speed & positioning of the material.
Variety of Power & Work Areas
Wide variety of laser powers available from 100-600 Watts and work areas from 230mm x 230mm, up to 350mm x 550mm
Low Operating Costs
High through-put, elimination of hard tooling & improved material yields equal increased profit margins.
Specifications of LC230 Laser Die Cutter
| Model No. | LC230 |
| Max Web Width | 230mm / 9” |
| Max Width of Feeding | 240mm / 9.4" |
| Max Web Diameter | 400mm / 15.7” |
| Max Web Speed | 60m/min (depending on laser power, material and cut pattern) |
| Laser Source | CO2 RF laser |
| Laser Power | 100W / 150W / 300W |
| Accuracy | ±0.1mm |
| Power Supply | 380V 50Hz / 60Hz, Three phase |
More Laser Cutting Samples
Watch LC230 Laser Cutting Reflective Transfer Film in Action
| Laser Die Cutting Machine LC230 | ||
| A. | Main Technical Parameters | |
| Working Area | Width 230mm, Length ∞ | |
| Maximum Web Width | 230mm | |
| Maximum Web Speed | Up to 60m/min | |
| Diameter | 2400mm (L) X 1800mm (W) X 1800mm (H) | |
| Weight | 1500Kg | |
| Consumption | 2KW | |
| Power supply | 380V / 220V three phase 50Hz / 60Hz | |
| B. | Standard Configuration | |
| 1. | Unwinder | |
| Maximum Web Diameter | 400mm | |
| Maximum Web Width | 230mm | |
| Core | 3 inch | |
| Pneumatic Expanding Shaft | 3 inch | |
|
Tension Control |
Optional | |
| Splice Table | Manual | |
| Web Guide | Yes | |
| 2. | Laser System | |
| Laser Source | Sealed CO2 RF laser | |
| Laser Power | 100W / 150W / 300W | |
| Laser Wavelength | 10.6 micron | |
| Laser Beam Positioning | Galvanometer | |
| Laser Spot Size | 210 microns | |
| Cooling | Water cooling | |
| 3. | Matrix Removal | |
| Back side slitting | Optional | |
| Matrix Rewinding | Yes | |
| Pneumatic Expanding Shaft | 3 inch | |
| 4. | Rewinder | |
| Tension Control | Optional | |
| Pneumatic Expanding Shaft | 3 inch | |
| C. | Options | Varnishing unit with UV dryer |
| Laminating unit | ||
| Slitting unit | ||
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | ||
Goldenlaser’s Typical Models of Laser Die Cutters
| Model No. |
LC230 |
LC350 |
| Max. cutting width |
230mm / 9″ |
350mm / 13.7″ |
| Web width |
240mm / 9.4” |
370mm / 14.5″ |
| Maximum web diameter |
400mm / 15.7″ |
750mm / 23.6″ |
| Web speed |
0-60m/min |
0-120m/min |
|
(Speed varies depending on material and cutting pattern) |
||
| Laser type |
CO2 RF metal laser |
|
| Laser power |
100W / 150W / 300W |
150W / 300W / 600W |
| Dimensions | 2400mm (L) X 730mm (W) X 1800mm (H) |
3580mm (L) X 2200mm (W) X 1950mm (H) |
| Weight |
1500Kg |
3000Kg |
| Standard function | Full cutting, kiss cutting (half cutting), perforation, engraving, marking, etc. | |
| Optional function | Lamination, UV varnish, slitting, etc. | |
| Processing materials | Plastic film, paper, glossy paper, matt paper, polyester, polypropylene, BOPP, plastic, film, polyimide, reflective tapes, etc. | |
| Supported graphics formats | AI, BMP, PLT, DXF, DST | |
| Power supply | 380V 50HZ or 60HZ / Three phase | |
Application
Reflective material, reflective tapes, transfer film, Retro reflection for high-visibility clothing, retro-reflective transfers, Aramid based flame retardant retro-reflective fabric, etc.
Laser Cutting Samples
Please contact goldenlaser for further information. Your response of following questions will help us recommend the most suitable machine.
1. What specific material do you need to laser cut? What is the roll width (or size) and thickness?
2. What is the final product? (application industry?)
Model No.: LC8060 (Dual Head)
