Tube Laser Cutting Machine P2080

Model No.: P2080

Introduction:

Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20-200mm, length 8m.

Laser source : IPG / nLIGHT fiber laser generator
Laser power : 1000w 1500w 2000w 2500w 3000w 4000w
Tube length : 8m
Tube diameter : 20mm ~ 200mm
Cnc controller : Germany PA

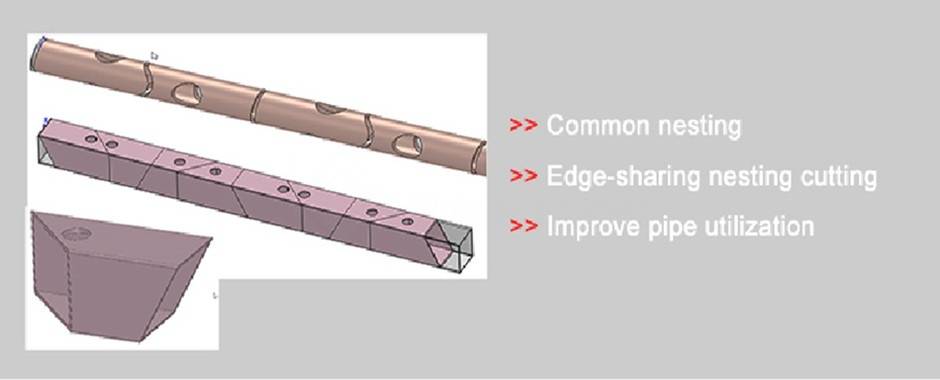

Nesting software : Spain Lantek

Description
Tech Specs
Models
Material & Application
Request

P2080 Fiber Laser Tube Cutting Machine

GOLDEN LASER - tube laser cutting machine is specially for metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped. The tube outer diameter can be 10mm~300mm, length 6m, 8m, 12m. tube length can be customized.

Main Features

Our laser machines have unique advantages in some functions.

Integrated main body makes the whole machine with good concentricity, verticality and precision; Dual motive chucks are compatible with a variety of pipe without adjusting jaws.

Optimized claw holding pressure makes tube wall thickness within 1mm without deformation; Innovative one-way air control claw tightness helps extend cylinder life.

Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging; Integrated circuits, streamline laying provides easy maintenance and low failure rate.

Automatic boundary, automatically find center, automatic compensation; Adjustable frequency perforation; High damping bed, good rigidity, high speed and acceleration.

Laser Cutting Samples

P2080 Tube Laser Cutting Machine Technical Parameters

Model number	P2080
Tube length	8000mm
Tube diameter	20~200mm
Laser source	Imported fiber laser resonator IPG / N-Light
Servo motor	4 servo motors for all axial movements
Laser source power	1000W / 1200W / 1500W / 2000W / 2500W / 3000W / 4000W / 6000W
Position accuracy	±0.03mm
Repeat position accuracy	±0.01mm
Maximum position speed	100m/min
Rotating speed	120r/min
Acceleration speed	1G
Cutting speed	Depends on material, laser source power
Electric power supply	AC380V 50/60Hz
Machine weight	11T

※ Appearance and specifications are subject to change due to updating.

GOLDEN LASER - FIBER LASER CUTTING SYSTEMS SERIES

Automatic Bundle Loader Fiber Laser Pipe Cutting Machine
Model NO.	P2060A	P3080A
Pipe Length	6000mm	8000mm
Pipe Diameter	20mm-200mm	20mm-300mm
Laser Power	700W / 1000W / 2000W / 2500W / 3000W / 4000W / 6000W / 8000W

Smart Fiber Laser Tube Cutting Machine
Model NO.	P2060	P3080
Pipe Length	6000mm	8000mm
Pipe Diameter	20mm-200mm	20mm-300mm
Laser Power	700W / 1000W / 2000W / 2500W / 3000W / 4000W / 6000W

Full Closed Pallet Table Fiber Laser Cutting Machine
Model NO.	Laser Power	Cutting Area
GF-1530JH	700W / 1000W / 2000W / 2500W / 3000W / 4000W / 6000W / 8000W	1500mm×3000mm
GF-2040JH		2000mm×4000mm

High Speed Single Mode Fiber Laser Metal Cutting Machine
Model NO.	Laser Power	Cutting Area
GF-1530	700W	1500mm×3000mm

Open-type Fiber Laser Metal Cutting Machine
Model NO.	Laser Power	Cutting Area
GF-1530	700W / 1000W / 2000W / 2500W / 3000W	1500mm×3000mm
GF-1540		1500mm×4000mm
GF-1560		1500mm×6000mm
GF-2040		2000mm×4000mm
GF-2060		2000mm×6000mm

Dual Function Fiber Laser Sheet & Tube Cutting Machine
Model NO.	Laser Power	Cutting Area
GF-1530T	700W / 1000W / 2000W / 2500W / 3000W	1500mm×3000mm
GF-1540T		1500mm×4000mm
GF-1560T		1500mm×6000mm

Small Size Fiber Laser Metal Cutting Machine
Model NO.	Laser Power	Cutting Area
GF-6040	700W / 1000W	600mm×400mm
GF-5050		500mm×500mm
GF-1309		1300mm×900mm

Applicable Industry

Metal furniture, medical device, fitness equipment, sports equipment, oil exploration, display shelf, agriculture machinery, bridge supporting, steel rail rack, steel structure, fire control and pipe processing etc.

Applicable Materials

Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20-200mm, length 8m.

Please contact goldenlaser for more information. Your response of following questions will help us recommend the most suitable tube laser cutting machine.

1, What type of tube do you need to laser cut? Round tube, square tube, rectangular tube, oval tube or other shaped tube?

2. What kind of metal is it? Mild steel or stainless steel or aluminum or..?

3. What is the wall thickness, diameter and length of the tube?

4. What is the finished product of the tube? (What is the application industry?)

5. Your company name, website, Email, Tel (WhatsApp / WeChat)?
